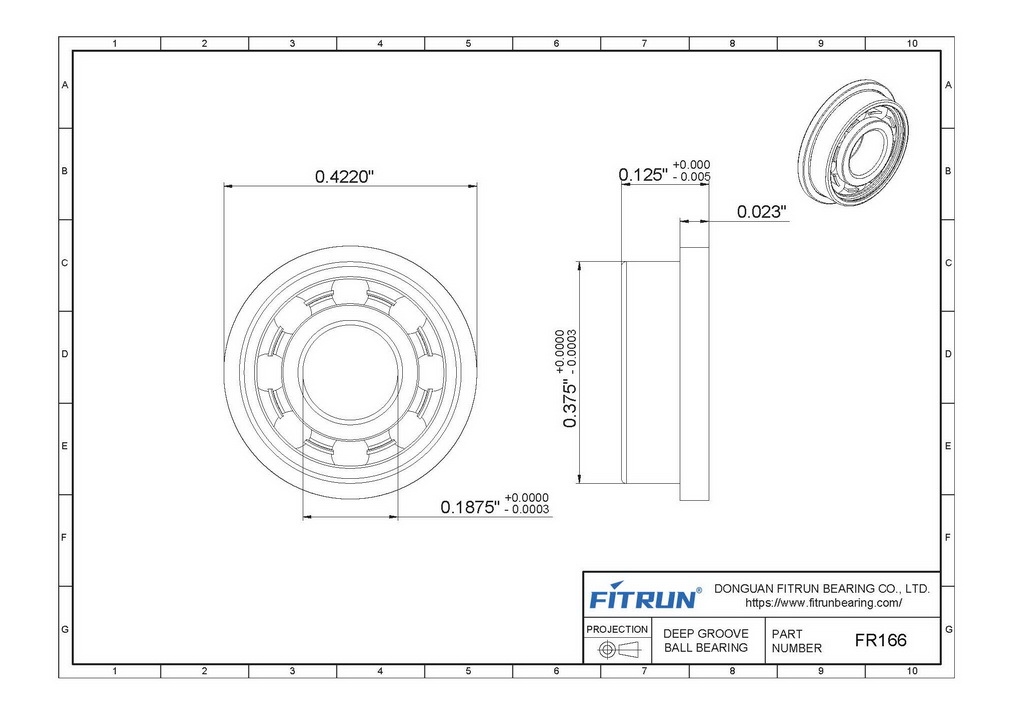

| Part Number | SFR166 |
| System of Measurement | Inch |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Bore Dia | 0.1875" |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 0.375" |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width | 0.1250" |
| Width Tolerance | -0.005" to 0" |
| Flange Outer Dia | 0.4220" |
| Flange Thickness | 0.023" |
| Ring Material | 440C Stainless Steel |
| Ball Material | 440C Stainless Steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Radial Load | 122 lbf |
| Static Radial Load | 44 lbf |
| Max Speed (X1000 rpm) | 45 |
| Lubrication | Pre-filled / Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -86 °F to 230 °F |
| ABEC Rating | ABEC-1 (ABEC 3/5/7 also available) |
| Radial Clearance Trade No. | MC3 |
| Radial Clearance | 0.00008" to 0.0005" |
| RoHS | Compliant |
| REACH | Compliant |
| Ball Dia | 0.06252" |
| Ball Qty | 8 |
| Weight | 0.9 g |
